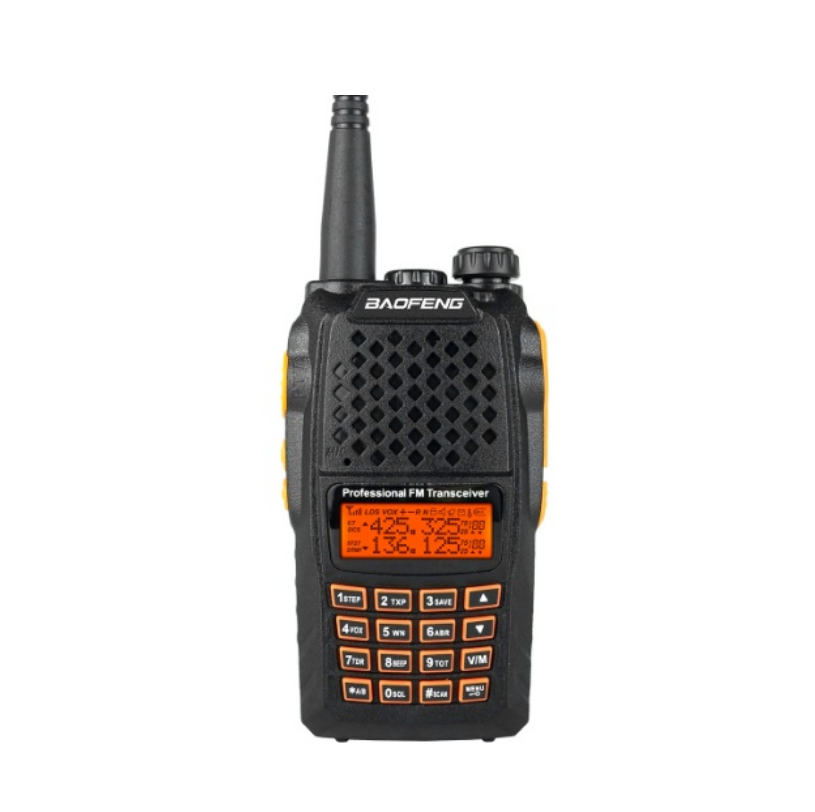

UV-6R
Main fuction:Dot-matrix LCD screen, Chinese and English voice prompts, dual-segment dual-display dual-frequency standby, 128 channels.High/low power switching, 8-level step FM, wide/narrow band selectable, tail noise cancellation.VOX voice-activated transmission, automatic power-saving mode, built-in FM radio and high-power flashlight.DTMF emergency alarm, ANI identification.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
- Product Name: UV-6R
- Product Category: Walkie-Talkie / Two-Way Radio
- Main Functions: Dot-matrix LCD screen; Chinese and English voice prompts; Dual-segment, dual-display, dual-frequency standby; High/low power switching; 128 memory channels; Ear-track cancellation; VOX voice-activated transmission; 8-step frequency selection; Automatic power saving; Wide/narrow band selection; High-power flashlight; Digital FM radio; DTMF emergency alarm; ANI identification.
- Key Specifications / Technical Parameters:
General Parameters
Frequency Range: VHF 136-174MHz / UHF 400-520MHz
Operating Voltage: DC 7.4V Rechargeable Lithium Battery
Antenna Impedance: 50Ω
Storage Channels: 128
Dimensions: 62.512336mm
Frequency Stability: ±2.5ppm
Operating Mode: Same-frequency simplex or different-frequency simplex
Operating Temperature: -20℃~+60℃
Battery Capacity: 1800 mAh
- Transmitter Section
Adjacent Channel Power: ≤-65dB/≤-60dB
Transmit Current: ≤1.5A
Maximum Frequency Deviation: ≤5KHz/≤2.5KHz
Spurious Power: ≤7.5uW
Signal-to-Noise Ratio: ≥-45dB/≥-40dB
Modulation Sensitivity: 8-12mV - Receiver Section
Receiver Sensitivity: ≤0.2uV (12dB) SINAD (Sound Analysis and Control)
Clutter Suppression: >60dB
Intermodulation Immunity: ≥65dB/≥60dB
Audio Distortion: <5%
Audio Power: 1W@10%
Receiver Current: ≤380mA - Standard Package:
Antenna, Lithium-ion Battery, Power Adapter, USB Smart Charger, Belt Clip
Optional Packages:
Earphones, Microphone, Programming Cable
