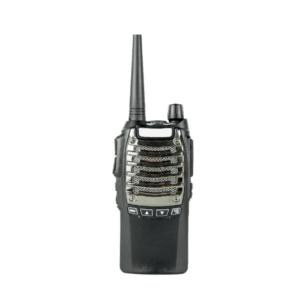

BF-T7
Main fuction:Durable and shock-resistant casing; supports BCL busy-time transmission shutdown, high/low power switching, and automatic power saving.16-channel storage, 3 scanning modes, CTCSS/DCS sub-audio interference prevention.SOS emergency alarm with Chinese and English voice announcements.VOX voice-activated transmission; supports computer frequency programming.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
- Product Name: BF-T7
- Product Category: Walkie-Talkie / Two-Way Radio
- Main Functions: Rugged and durable, shock resistant; Busy BCL mode, high/low power switching for energy saving; Automatic power saving function; 16 memory channels; SOS emergency alarm; Chinese and English voice announcement; Computer programming; CTCSS/DCS signaling editing; VOX voice-activated transmission; Three scanning modes (time, carrier, search).
- Key Specifications / Technical Parameters:
General Parameters
Frequency Range: UHF 400-470MHz
Operating Voltage: DC3.7V (Lithium-ion Battery)
Antenna Impedance: 50Ω
Storage Channels: 16 groups
Dimensions: 145523mm
Frequency Stability: ±2.5ppm
Operating Mode: Same-frequency simplex or different-frequency simplex
Operating Temperature: -20℃~+50℃
Protection Rating: IP23, IPX-1 Waterproof
Battery Capacity: 2000-2500mAh
Communication Distance: 0-5km
- Transmitter Section
RF Power: 2W
Residual Wave Radiation: ≤-60dB
Transmit Current: ≤1000mA
Maximum Frequency Deviation: ≤±5KHz
Modulation Method: Frequency Modulation
Pre-emphasis Characteristics: 6dB per octave - Receiver Section
Receiver Sensitivity: <0.16uv (12dB) Squelch Sensitivity: <0.2uv
Intermodulation Immunity: ≥60dB
Audio Distortion: <10%
Audio Power: ≥380mW
Receiver Current: ≤380mA
