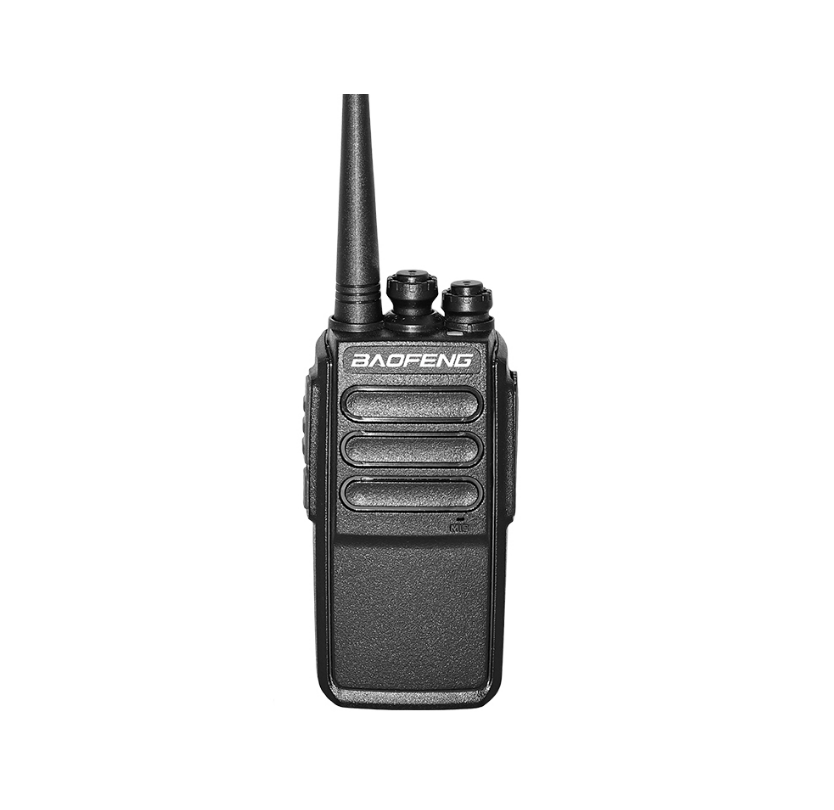

BF-V1
Main fuction:Customizable side buttons, battery voltage reminder, transmit timeout protection, and channel busy lock.Channel scanning, adjustable squelch levels (0-9), and voice on/off switching.Computer programming, VOX voice-controlled transmission, tail noise cancellation, and power-saving mode.QT/DQT digital sub-audio to prevent crosstalk interference.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
- Product Name: BF-V1
- Product Category: Walkie-Talkie / Two-Way Radio
- Main Functions: Customizable side buttons; Battery voltage pre-indication; Transmission timeout protection; Busy channel lock; Channel scanning; 0-9 level adjustable squelch; Voice switch and voice selection; Computer programming; VOX voice-controlled transmission; Tail-end cancellation; Power saving function; QT/DQT digital sub-audio, anti-interference.
- Key Specifications / Technical Parameters:
General Parameters
Frequency Range: 400-470MHz
Operating Voltage: 3.7V Lithium Battery
Antenna Impedance: 50Ω
Storage Channels: 16
Dimensions: 115.556.834.5mm
Frequency Stability: ±2.5ppm
Operating Mode: Same-frequency simplex or different-frequency simplex
Operating Temperature: -30℃~+60℃
Grounding Method: Negative Grounding
- Transmitter Section
RF Power: <5W
Residual Wave Radiation: ≤-60dB
Transmit Current: ≤1000mA
Maximum Frequency Deviation: ≤±5KHz
Modulation Method: Frequency Modulation
Pre-emphasis Characteristic: 6dB per octave - Receiver Section
Receiver Sensitivity: <0.16uv (12dB) Squelch Sensitivity: <0.2uv
Intermodulation Immunity: ≥60dB
Audio Distortion: <10%
Audio Power: ≥380mW
Receiver Current: ≤380mA - Standard Package:
Antenna, Lithium-ion Battery, Power Adapter, USB Smart Charger, Belt Clip
Optional Package:
Earphones, Microphone, Programming Cable
